PeerDAS has a custody count trap

PeerDAS has a tiny ENR field called cgc.

It is supposed to say how many custody groups a peer has. The boring answer would be: most peers advertise the minimum, a few advertise more, and probe results roughly follow that.

The boring answer was wrong.

The spec gives the scale. Mainnet has 128 custody groups. The protocol minimum is 4. Validators are expected to custody 8. The p2p spec also says cgc is a uint64 in the ENR, and that zero is encoded as an empty byte string.

So 0x04 is not a random hex blob. It means 4.

0x80 means 128.

0x means zero.

That last one is where the data gets annoying.

Across the seven complete UTC days from June 14 through June 20, I took the latest node_record_consensus row per discovered mainnet node_id. That gave 3,334 consensus ENRs.

The distribution was not just "everyone does the minimum":

• 31.7% advertised cgc=4, the minimum.
• 22.6% advertised cgc=8, the validator requirement.
• 24.8% advertised cgc=128, full custody.
• 14.8% advertised some other explicit nonzero value.
• 6.1% advertised cgc=0.

The zero bucket was small, but it behaved completely differently.

I joined those latest ENRs to mainnet.int_custody_probe, grouped by the advertised cgc, and counted probe results. Peers with explicit nonzero cgc values were boring in the good way. They mostly worked.

The cgc=0 peers did not.

START = "2026-06-14 00:00:00"
END = "2026-06-21 00:00:00"

latest_enr = clickhouse.query("clickhouse-raw", f"""
SELECT
  node_id,
  argMax(peer_id_unique_key, event_date_time) AS peer_id_unique_key,
  argMax(cgc, event_date_time) AS cgc,
  argMax(implementation, event_date_time) AS implementation,
  argMax(version, event_date_time) AS version
FROM node_record_consensus
WHERE meta_network_name = 'mainnet'
  AND event_date_time >= toDateTime('{START}')
  AND event_date_time <  toDateTime('{END}')
GROUP BY node_id
""")

probe_stats = clickhouse.query("clickhouse-refined", f"""
SELECT
  peer_id_unique_key,
  count() AS probes,
  countIf(result = 'success') AS success,
  countIf(result = 'missing') AS missing,
  countIf(result = 'failure') AS failure,
  quantileExact(0.5)(response_time_ms) AS p50_ms,
  quantileExact(0.95)(response_time_ms) AS p95_ms
FROM mainnet.int_custody_probe
WHERE probe_date_time >= toDateTime('{START}')
  AND probe_date_time <  toDateTime('{END}')
GROUP BY peer_id_unique_key
""")

matched = probe_stats.merge(
    latest_enr[["peer_id_unique_key", "cgc", "implementation", "version"]],
    on="peer_id_unique_key",
    how="inner",
)

matched.groupby("cgc").agg(
    peers=("peer_id_unique_key", "count"),
    probes=("probes", "sum"),
    missing=("missing", "sum"),
    failures=("failure", "sum"),
)

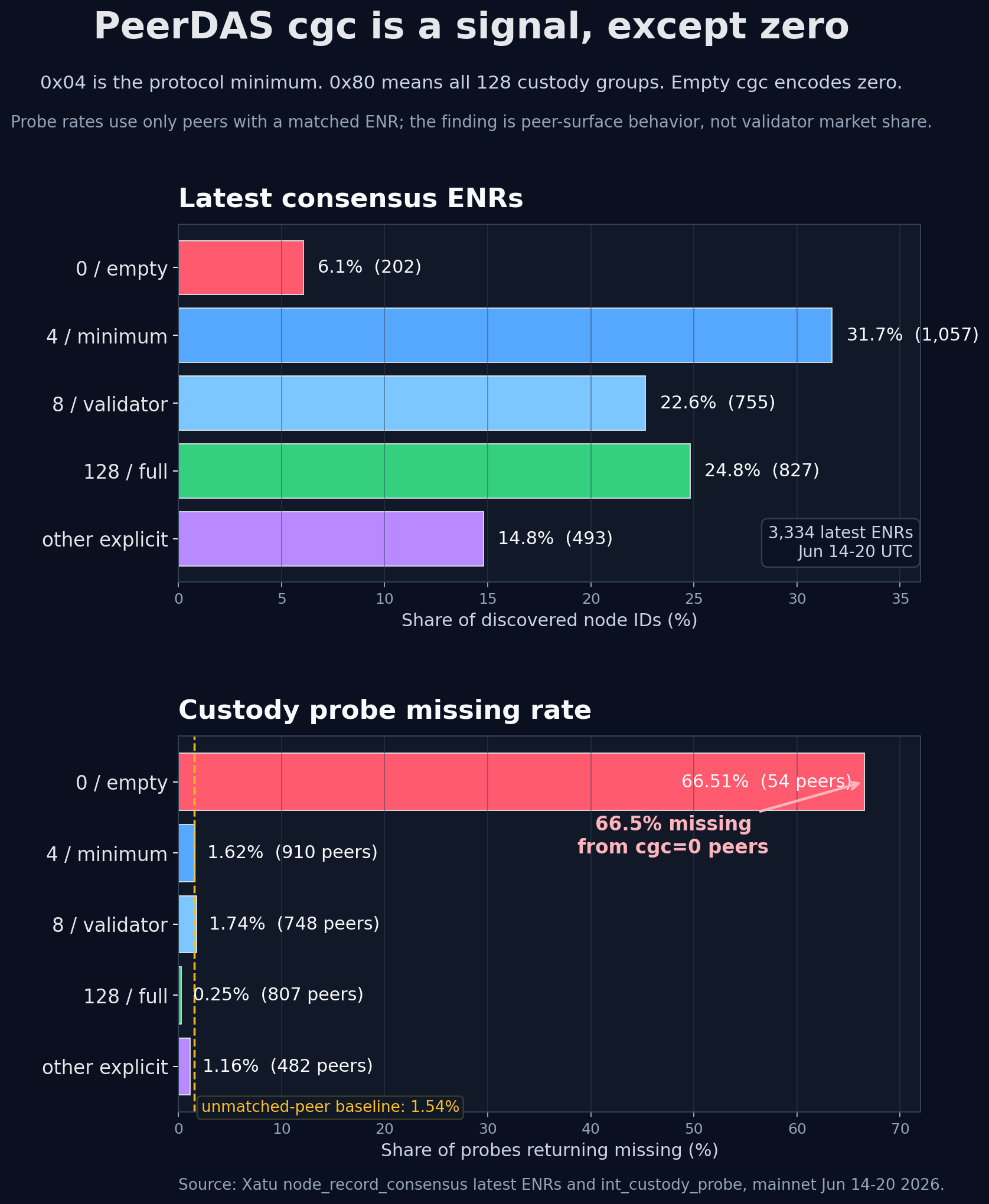

The matched probe set had the shape I care about:

ENR cgc bucket	Probed peers	Probes	Missing rate
0x / zero	54	87,835	66.51%
0x04 / 4	910	2,314,976	1.62%
0x08 / 8	748	1,761,312	1.74%
0x80 / 128	807	1,864,478	0.25%
other explicit nonzero	482	1,162,345	1.16%

The unmatched probe baseline was 1.54% missing, so the minimum-custody peers were basically normal. The full-custody peers were cleaner than normal.

The zero peers were not normal at all.

They were not timing out slowly either. The median peer-level p50 response time in the cgc=0 bucket was 33 ms, and the median peer-level p95 was 120 ms. That looks like a fast "I do not have this" path, not a slow network path.

There is one more uncomfortable detail: all 202 latest ENRs in the zero bucket identified as Erigon/Caplin. The probed zero bucket was also Erigon/Caplin: 54 peers, 87,835 probes, 66.5% missing.

That does not mean "Erigon is 6% of mainnet". It does not even mean 6% of validators. node_record_consensus is a discoverable peer-surface sample, and the probe table is whatever Xatu managed to probe. Treat it like a P2P surface, not a census.

But as a P2P surface, the pattern is pretty clear.

cgc=4 is not the danger sign. Minimum custody peers mostly served what they said they served.

cgc=0 is the danger sign. It is not just a smaller custody count. In this sample, it marked peers that were discoverable, fast, and usually useless for the requested data column.

That is the trap.

If you are building PeerDAS peer selection from ENRs, do not average zero into the same mental bucket as 4 or 8. It is a hole. Treat it like one.
