One PeerDAS column observation can become 21 probe_count units

mainnet.fct_data_column_availability_by_slot_blob has both blob_index and probe_count, which makes summing the latter feel safe. It is not. Across 14 complete UTC days, the source slot/column table held 63,597,380 observation units; the blob-level table summed to 335,651,250 probe_count units because it copied each column result once for every blob in the slot.

This is the other axis of the PeerDAS commitment-list trap I looked at last week. A data column sidecar contains the cell at one column index from every blob row in the block. It makes sense to represent that column's availability against every blob, but those blob rows still came from the same column observation.

The transformation is refreshingly blunt. It reads fct_data_column_availability_by_slot, then uses an ARRAY JOIN to manufacture one blob_index row for every blob:

FROM mainnet.fct_data_column_availability_by_slot FINAL
WHERE slot_start_date_time BETWEEN <task start> AND <task end>
ARRAY JOIN range(toUInt16(blob_count)) AS blob_index

PeerDAS has 128 columns. Each DataColumnSidecar carries one column list whose length matches the block's kzg_commitments list, so the column contains one cell from each blob. In a 21-blob block, one observed column is valid evidence for all 21 blobs. The refined table expresses that by making 21 rows with the same counts, latency percentiles and availability percentage.

I started from the unexpanded table so the source denominator stayed visible:

SELECT
  count() AS slot_column_rows,
  uniqExact(slot) AS slots,
  sum(probe_count) AS probe_units,
  sum(success_count) AS success_units,
  sum(failure_count) AS failure_units,
  sum(missing_count) AS missing_units,
  sum(custody_probe_count) AS custody_probe_units,
  sum(gossipsub_count) AS gossipsub_units
FROM mainnet.fct_data_column_availability_by_slot FINAL
WHERE slot_start_date_time >= toDateTime('2026-06-28 00:00:00')
  AND slot_start_date_time <  toDateTime('2026-07-12 00:00:00');

That returned 9,623,424 slot/column rows over 75,183 slots and 63,597,380 probe_count units. As the earlier availability post warned, these are not all active RPC probes: 63,595,628 came from passive gossipsub observations and only 1,752 from the refined custody-probe path.

Then I collapsed the blob table back to (slot, column_index) and checked every expanded key. This is the query behind the headline number:

SELECT
  count() AS slot_column_keys,
  sum(key_blob_rows) AS blob_column_rows,
  countIf(key_blob_rows != key_blob_count) AS row_count_errors,
  countIf(
    key_index_count != key_blob_count
    OR key_min_index != 0
    OR key_max_index + 1 != key_blob_count
  ) AS index_set_errors,
  countIf(key_metric_variants != 1) AS metric_variant_errors,
  sum(key_probe_count) AS deduped_probe_units,
  sum(key_probe_count * key_blob_rows) AS expanded_probe_units,
  round(expanded_probe_units / deduped_probe_units, 6) AS repeat_factor
FROM (
  SELECT
    slot,
    column_index,
    count() AS key_blob_rows,
    any(blob_count) AS key_blob_count,
    uniqExact(blob_index) AS key_index_count,
    min(blob_index) AS key_min_index,
    max(blob_index) AS key_max_index,
    uniqExact(tuple(
      probe_count, success_count, failure_count, missing_count,
      availability_pct, min_response_time_ms, p50_response_time_ms,
      p95_response_time_ms, p99_response_time_ms, max_response_time_ms,
      unique_peer_count, unique_client_count, unique_implementation_count
    )) AS key_metric_variants,
    any(probe_count) AS key_probe_count
  FROM mainnet.fct_data_column_availability_by_slot_blob FINAL
  WHERE slot_start_date_time >= toDateTime('2026-06-28 00:00:00')
    AND slot_start_date_time <  toDateTime('2026-07-12 00:00:00')
  GROUP BY slot, column_index
);

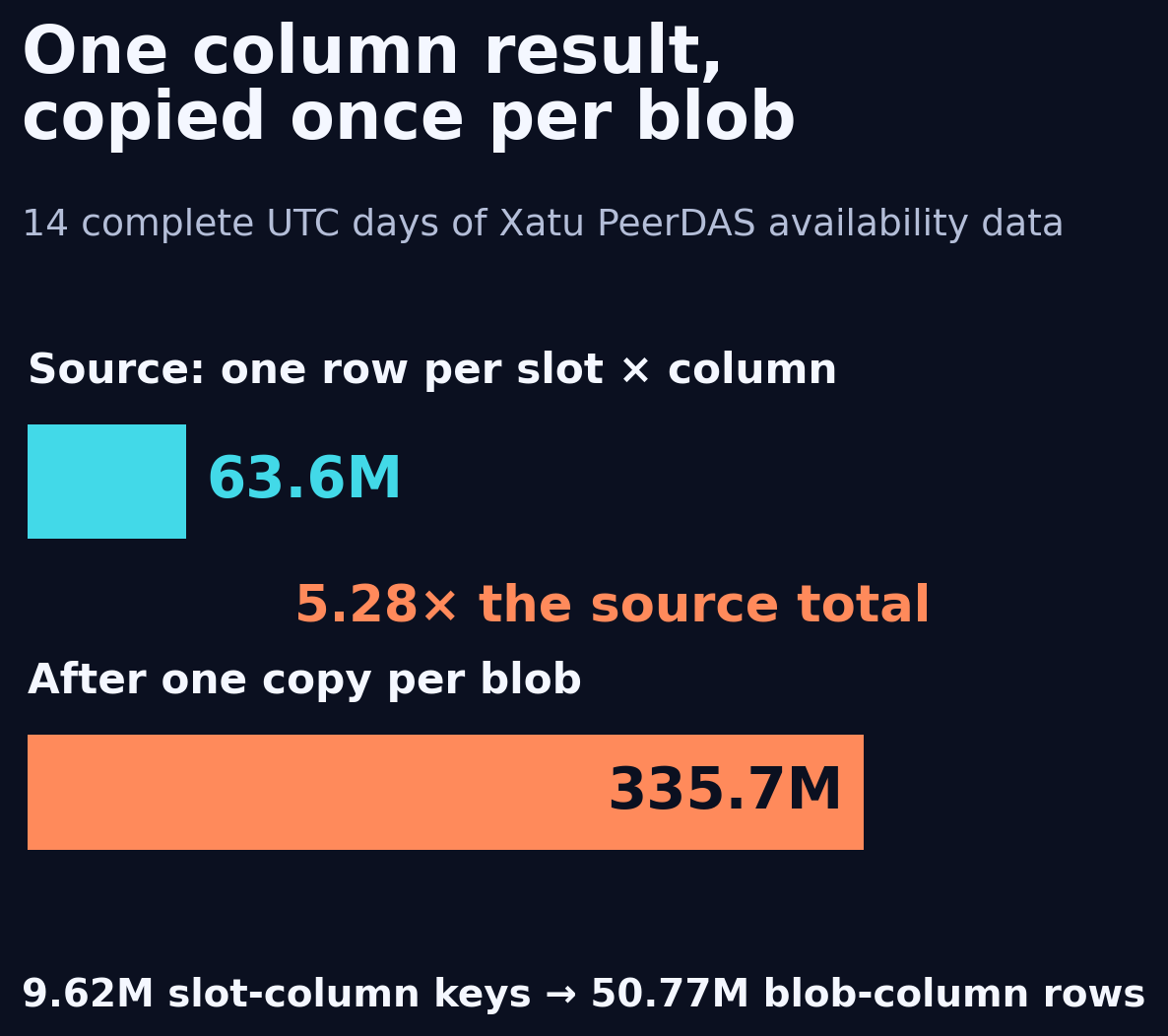

All 9,623,424 slot/column keys passed. Each key had exactly blob_count rows, the blob indices ran from zero through blob_count - 1, and the aggregate metrics were identical across those rows. The expansion produced 50,770,816 blob/column rows and repeated the 63.60M source units into 335.65M, an overall factor of 5.277753x. Bucketed by blob_count, the ratio was exactly 1x, 2x, 3x and so on through 21x.

Open the chart at full resolution.

The daily multiplier moved between 4.33x and 6.52x because the blob-count mix moved. This is not duplicate ingestion. It is the intended row grain doing exactly what the SQL asks, which is why a plain sum(probe_count) is such an easy mistake.

I checked the source scale against raw gossipsub rows rather than trusting two refined tables. With both event time and target slot bounded, the raw table had 63,786,240 rows over the same 75,183 slots:

SELECT
  count() AS raw_rows,
  uniqExact(tuple(slot, column_index)) AS slot_column_keys,
  uniqExact(slot) AS slots
FROM default.libp2p_gossipsub_data_column_sidecar FINAL
WHERE meta_network_name = 'mainnet'
  AND event_date_time >= toDateTime('2026-06-28 00:00:00')
  AND event_date_time <  toDateTime('2026-07-13 00:00:00')
  AND slot_start_date_time >= toDateTime('2026-06-28 00:00:00')
  AND slot_start_date_time <  toDateTime('2026-07-12 00:00:00');

That raw count was 0.30% above the refined table's 63,595,628 gossipsub units. I kept the refined totals for the exact transformation comparison instead of averaging away the difference.

Use fct_data_column_availability_by_slot when the question is how many underlying slot/column observation units the model counted. Use the blob-level table when the question really needs a blob index. Just do not sum its repeated probe_count, success counts, latency summaries or unique-count columns and rename the result "probes." A 21-blob slot can make one column observation look like 21 of them without a single extra source observation.
