The sampler advertised what it could not serve

· 6 min read
Aubury Essentian
Ethereum Research

An Ethereum transaction announcement is an invitation: send the hash now, then let the other peer ask for the transaction. One Geth sampler on Glamsterdam devnet-8 spent 60 hours issuing invitations that its legacy peers could not cash. Its logs contain 163,752 failed full-blob encodes across 42,537 truncated transaction labels.

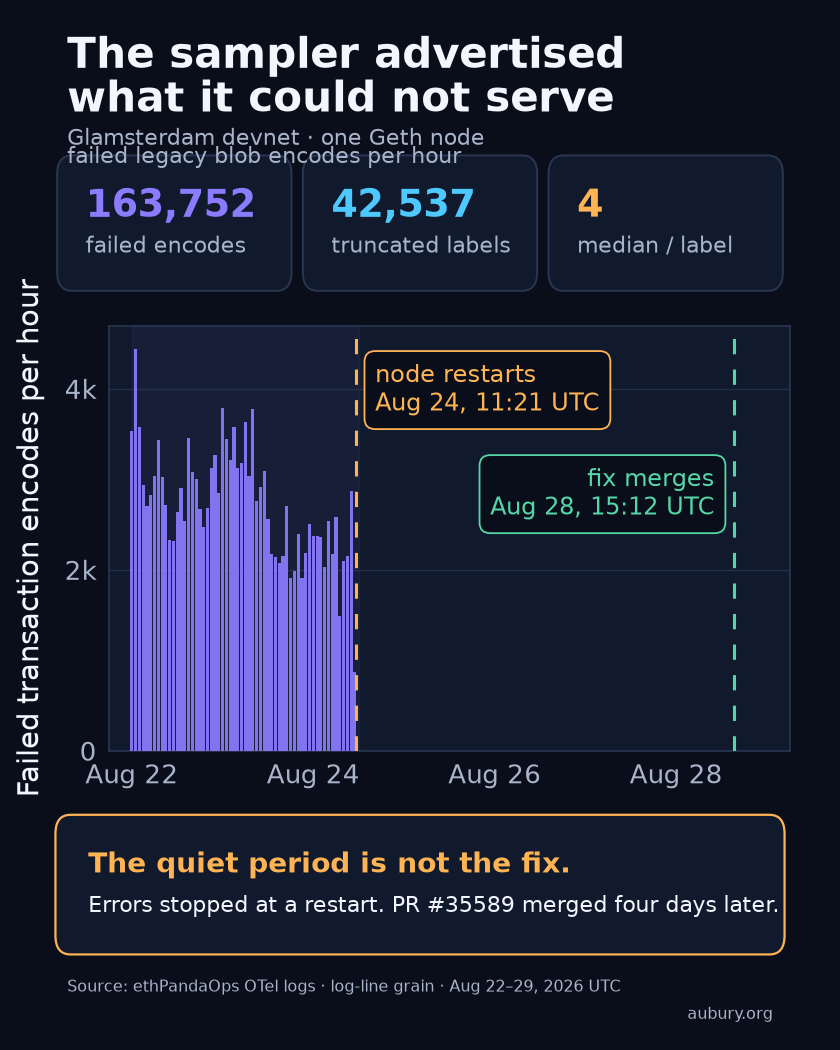

Hourly chart of 163,752 failed legacy blob transaction encodes on one Glamsterdam Geth sampler from August 22 to 24, followed by a quiet period. The node restarted on August 24, four days before Geth PR 35589 merged, so the chart does not attribute the quiet period to the fix.

Two wire formats shared one pool

EIP-8070 makes the execution-layer blobpool sparse. A node fetches complete blob data for some transactions, but usually keeps only the cells aligned with its consensus client's custody set. A basic sampler can therefore hold 8 of the 64 cells, well short of the 64-cell reconstruction threshold.

The new eth/72 wire format understands that shape. Its NewPooledTransactionHashes message carries a cell-availability bitmap, and peers fetch blob data with GetCells. Its PooledTransactions response leaves the blob list empty because the cells travel separately. The current devp2p specification keeps pre-eth/72 peers alive during rollout, but those peers still ask for the older full-blob transaction encoding.

That compatibility lane had a bad edge. The Geth build running during this event, aa1f2fcf, batched announcements by custody mask, but it did not check whether the remote peer could retrieve what was being advertised. When a pre-eth/72 peer sent GetPooledTransactions, Geth called GetRLP for each requested hash. The legacy branch then tried to recover full blobs from the stored cells. With fewer than 64 cells, recovery failed, Geth logged the error, and the transaction was skipped from the response.

Forty-two thousand hash labels hit the same wall

I counted the log line at its actual grain: one row is one failed transaction-encoding attempt. It is not a peer, a request packet, or a unique transaction. This is the exact bounded query:

from ethpandaops import clickhouse

rows = clickhouse.query("clickhouse-raw", """
SELECT
count() AS failed_encodes,
uniqExact(tuple(
Timestamp, Body, ResourceAttributes['host.name']
)) AS unique_log_lines,
uniqExact(ResourceAttributes['host.name']) AS reporting_hosts,
uniqExact(extract(Body, 'hash=([^ ]+)')) AS truncated_hash_labels,
countIf(positionCaseInsensitive(
Body, 'not enough cells to perform reconstruction'
) > 0) AS not_enough_cells,
min(Timestamp) AS first_seen,
max(Timestamp) AS last_seen
FROM external.otel_logs
WHERE ResourceAttributes['network'] = 'glamsterdam-devnet-8'
AND Timestamp >= toDateTime64('2026-08-22 00:00:00', 9, 'UTC')
AND Timestamp < toDateTime64('2026-08-24 12:00:00', 9, 'UTC')
AND positionCaseInsensitive(
Body, 'Failed to encode pooled tx into the network type'
) > 0
""")

The 163,752 rows were 163,752 distinct (timestamp, body, host) log lines, so duplicate ingestion did not inflate the count. Every row ended in not enough cells to perform reconstruction, and every row came from the same Geth host. Geth shortens hashes in its console output to six leading and six trailing hex characters, so 42,537 is a count of truncated hash labels, not a canonical exact-hash set.

Even with that limitation, the repeat shape is clear. The median label failed four times, the 95th percentile failed eight times, and the busiest label failed 14 times. The peak hour produced 4,440 failed encodes. This was not one poisoned transaction hammering a loop; thousands of sparse transactions were repeatedly requested through a wire format that required complete blobs.

The request counters agree on the protocol lane

Geth's protocol metrics give a separate view of the same fixed 60-hour window. I ran these PromQL expressions at the window's ending timestamp, 1787572800:

increase(p2p_ingress_eth_71_0x09_packets{
instance="glamsterdam-devnet-8-buildoor-lighthouse-geth-1"
}[60h]) @ 1787572800

increase(p2p_egress_eth_71_0x0a_packets{
instance="glamsterdam-devnet-8-buildoor-lighthouse-geth-1"
}[60h]) @ 1787572800

Message 0x09 is GetPooledTransactions; 0x0a is its response. The node received 3,015,709 eth/71 request packets and sent exactly 3,015,709 response packets. Over eth/72, the corresponding counts were 881,187 requests and 881,115 responses.

Those packet counters are not the failure denominator. A request can carry several hashes, while the error is emitted once per hash that reaches the failed encoding path. They do establish two useful facts without leaning on the log parser: the sampler was serving a large eth/71 request lane, and eth/72 traffic was active beside it.

The restart is not the fix

The timing almost invites the wrong story. The final error landed at 2026-08-24 11:21:08.934 UTC; one second later the node logged an interrupt and restarted on Geth commit e5566cea. A follow-up query found zero matching errors from August 24 at 12:00 UTC through August 29 at 00:00 UTC.

Geth PR #35589 was not authored until August 26 and merged on August 28. It cannot explain why this error stream stopped on August 24. The restarted build did not contain the fix, and a later August 28 image at 86696a8f was still two commits behind the merge while remaining quiet. Something about the triggering pool or request cohort changed across the restart; the available telemetry does not say which.

A live peer snapshot on August 28 found 46 connections on the same node: 1 negotiated eth/69, 19 used eth/71, and 26 used eth/72. That is not the historical peer denominator for the August 22-24 event, but it shows why the compatibility path still matters during rollout.

The merged patch adds the missing boundary. Geth now suppresses an announcement to a pre-eth/72 peer unless the transaction has at least DataPerBlob cells and can be reconstructed. It leaves the transaction queued because more cells may arrive later; eth/72 announcements continue unchanged.

That is a small fix with a clean meaning: do not advertise a transaction through a format that you cannot serve. EIP-8070 is still in Review, this was one devnet node, and the logs do not measure wasted CPU or bandwidth. They do show the failure surface directly, 163,752 times.
