The refund-cap gap was 91% XEN batches

EIP-3298 came back from Stagnant and became Draft on August 19. It removes the storage-clear refund and the current 20% transaction refund cap after EIPs 8037 and 8038, while keeping same-transaction write reversals. I expected the current cap to catch a broad mix of refund-heavy Ethereum calls.

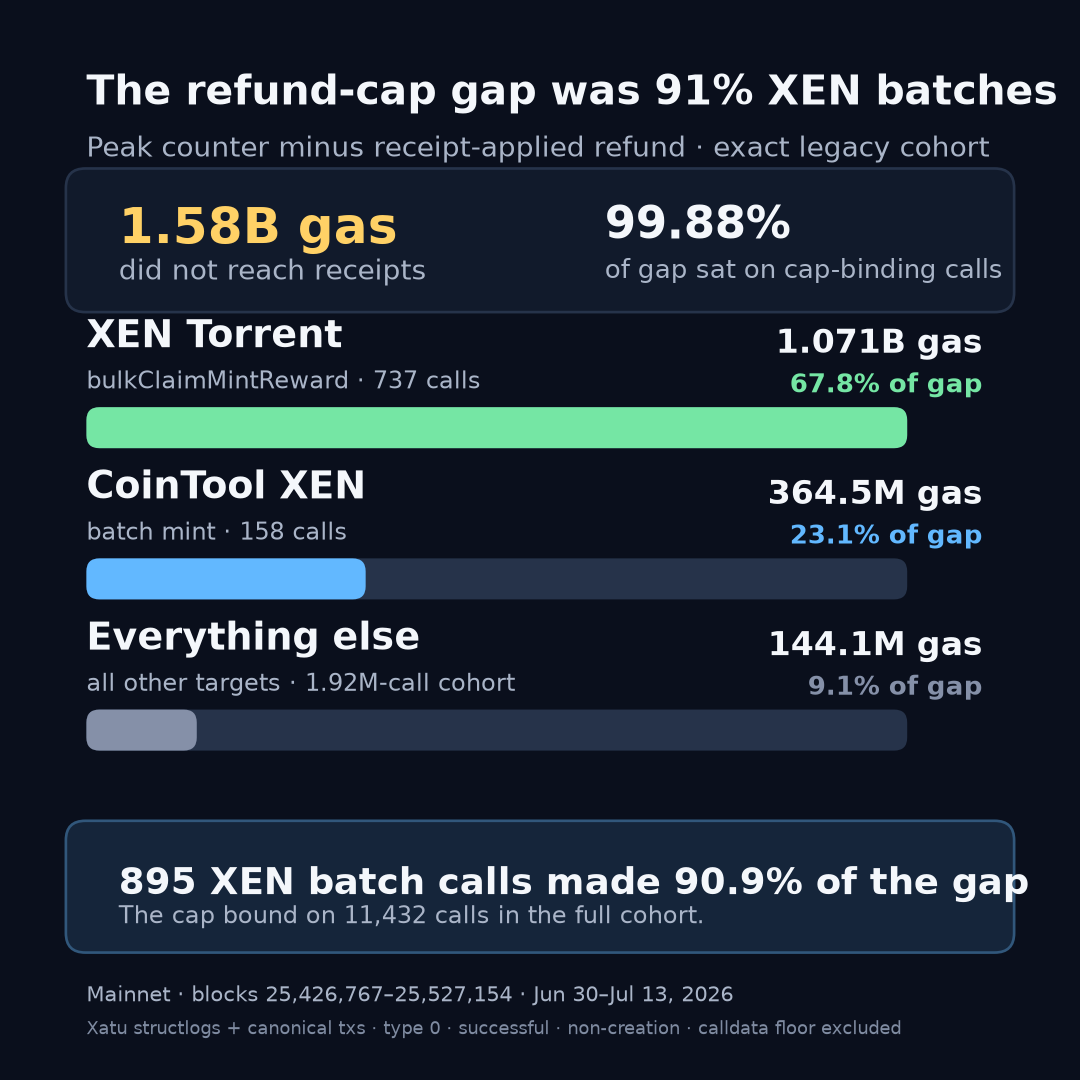

Instead, 895 calls into two XEN batch-minter contracts made 90.9% of the gap between the peak refund counter and the refund that actually reached transaction receipts.

Correction, 24 August 2026: I wrote below that EIP-7778 already kept block gas accounting before refunds and that one CoinTool call did not make its block cheaper. EIP-7778 is scheduled for Glamsterdam, not active on mainnet. Under current rules, refunds lower both receipt gas and the gas counted in the block. The correction and block-level backcast found at least 2,405 recent blocks above their historical gas limits before refunds. The XEN concentration result in this post survives.

The cap barely binds, then binds hard

The structlog aggregate currently ends partway through July 14, so this is not live August activity. I used its latest 14 complete UTC days, June 30 through July 13, covering blocks 25,426,767–25,527,154. The raw canonical block table returned 100,388 rows, 100,388 unique block numbers, and 100,388 unique hashes across the same literal bounds.

I narrowed the measurement to successful, non-creation type-0 transactions whose calldata floor did not bind. That is deliberately boring. A legacy call has no access list or EIP-7702 authorization cost, so its protocol intrinsic gas is exactly 21,000 + 4 × zero calldata bytes + 16 × nonzero calldata bytes. The refund visible at settlement is then exact intrinsic + root execution gas - receipt gas.

This is the query I ran against the full range after checking the result day by day:

WITH cohort AS
(
    SELECT
        r.transaction_hash AS tx_hash,
        r.gas_refund AS peak_refund,
        r.gas_cumulative AS execution_gas,
        r.intrinsic_gas AS stored_intrinsic,
        toInt64(
            21000
            + 4 * t.n_input_zero_bytes
            + 16 * t.n_input_nonzero_bytes
        ) AS exact_intrinsic,
        toInt64(exact_intrinsic) + toInt64(r.gas_cumulative)
            AS pre_refund_gas,
        pre_refund_gas - toInt64(t.gas_used) AS applied_refund,
        intDiv(pre_refund_gas, 5) AS refund_cap
    FROM
    (
        SELECT
            block_number,
            transaction_hash,
            gas_refund,
            gas_cumulative,
            intrinsic_gas
        FROM default.canonical_execution_transaction_structlog_agg
        WHERE meta_network_name = 'mainnet'
          AND block_number BETWEEN 25426767 AND 25527154
          AND operation = ''
          AND call_frame_id = 0
    ) AS r
    GLOBAL INNER JOIN
    (
        SELECT
            block_number,
            transaction_hash,
            gas_used,
            n_input_zero_bytes,
            n_input_nonzero_bytes
        FROM default.canonical_execution_transaction FINAL
        WHERE meta_network_name = 'mainnet'
          AND block_number BETWEEN 25426767 AND 25527154
          AND transaction_type = 0
          AND to_address IS NOT NULL
          AND success
          AND gas_used > 21000
              + 10 * n_input_zero_bytes
              + 40 * n_input_nonzero_bytes
    ) AS t USING (block_number, transaction_hash)
)
SELECT
    count() AS transactions,
    countIf(peak_refund > 0) AS positive_counter,
    countIf(applied_refund = refund_cap AND applied_refund > 0)
        AS cap_binding,
    countIf(
        applied_refund < refund_cap
        AND peak_refund > toUInt64(applied_refund)
    ) AS peak_fell_before_settlement,
    countIf(toInt64(stored_intrinsic) != exact_intrinsic)
        AS bad_stored_intrinsic,
    countIf(
        applied_refund < 0
        OR applied_refund > refund_cap
        OR peak_refund < toUInt64(applied_refund)
    ) AS invalid_rows,
    sum(toUInt128(peak_refund)) AS peak_counter_gas,
    sum(toInt128(applied_refund)) AS applied_refund_gas,
    sum(toInt128(peak_refund) - toInt128(applied_refund))
        AS counter_to_receipt_gap,
    sumIf(
        toInt128(peak_refund) - toInt128(applied_refund),
        applied_refund = refund_cap AND applied_refund > 0
    ) AS cap_binding_gap
FROM cohort

Measurement	Result
Exact legacy-call cohort	1,917,264 transactions
Positive peak refund counter	982,031 transactions
Current 20% cap binding	11,432 transactions
Peak refund counters	11.063 billion gas
Refund applied to receipts	9.484 billion gas
Counter-to-receipt gap	1.580 billion gas
Gap on cap-binding calls	1.578 billion gas, 99.88%
Invalid settlement identities	0

Only 1.16% of calls with a positive refund counter hit the cap. When they did, they were huge: 11,432 capped calls accounted for nearly all of the 1.58 billion-gas gap. Another 424 uncapped calls had a peak counter above their final applied refund, but those counter reversals contributed only 1.84 million gas, or 0.12% of the gap.

XEN sat on the choke point

I carried the transaction target and four-byte selector through the same daily queries, then grouped the bounded results locally. The top row was XEN Torrent calling bulkClaimMintReward(uint256,address): 737 calls and 1.071 billion gas, or 67.81% of the whole gap. CoinTool's XEN Batch Minter added 158 calls and 364.5 million gas, another 23.07%.

Everything else in the 1.92 million-call cohort contributed 144.1 million gas. The contract labels came from mainnet.dim_contract_owner FINAL; the selectors 0xf5878b9b and 0xc2580804 both resolved through verified-contract rows in mainnet.dim_function_signature FINAL.

One CoinTool transaction makes the settlement easy to see. Transaction 0xdf03…d6fca had 53,964 intrinsic gas and 10,688,514 execution gas, for 10,742,478 gas before refunds. One fifth is 2,148,495 gas. Its public receipt and the canonical transaction table both report 8,593,983 gas used, exactly 10,742,478 - 2,148,495, while the trace's peak refund counter reached 4.8 million gas.

The peak-to-receipt gap was 2,651,505 gas in that one call. It did not make the block cheaper; EIP-7778 already keeps block-level execution accounting before refunds.

This is not an EIP-3298 backcast

It would be tempting to call the 1.58 billion-gas gap "extra refunds after EIP-3298." That would be wrong. The proposal lifts the cap only after deleting the future 11,616-gas storage-clear refund, while retaining the EIP-8038 write-reversal refund. Today's peak counter does not tell me which entries survive that rewrite, and the proposal still applies the calldata floor after settlement.

There is a second trap in this table. Its gas_refund is the maximum counter seen during the trace, not a promise that the whole value reached the receipt. Worse, the stored intrinsic_gas in this historical snapshot disagreed with the exact type-0 formula on all 982,031 positive-counter rows. I recomputed intrinsic gas instead of trying to repair that column.

EIP-3298 may still be a clean simplification. But the current cap was not a broad brake on every refunding application in this window. It was a narrow choke point with two XEN batch minters sitting on it.
