Caplin reorg depth is wrapping into 65,534

A 65,534-block Ethereum reorg did not happen last week. Caplin still said it did, at least through the Beacon API chain_reorg event stream.

I already wrote once about chain_reorg.depth being client-shaped rather than a clean network fact. Lighthouse and Grandine tend to say depth 1. Lodestar, Prysm, Teku, and Tysm usually say depth 2 for the same edge. That split is annoying, but it is at least small and interpretable.

This one is less subtle. In seven complete UTC days, Xatu saw 143 distinct reorg edges in beacon_api_eth_v1_events_chain_reorg, where I define an edge as (slot, old_head_block, new_head_block). Caplin appeared on 93 of those edges. Every one of those 93 had at least one wrapped-looking depth value, usually 65,534.

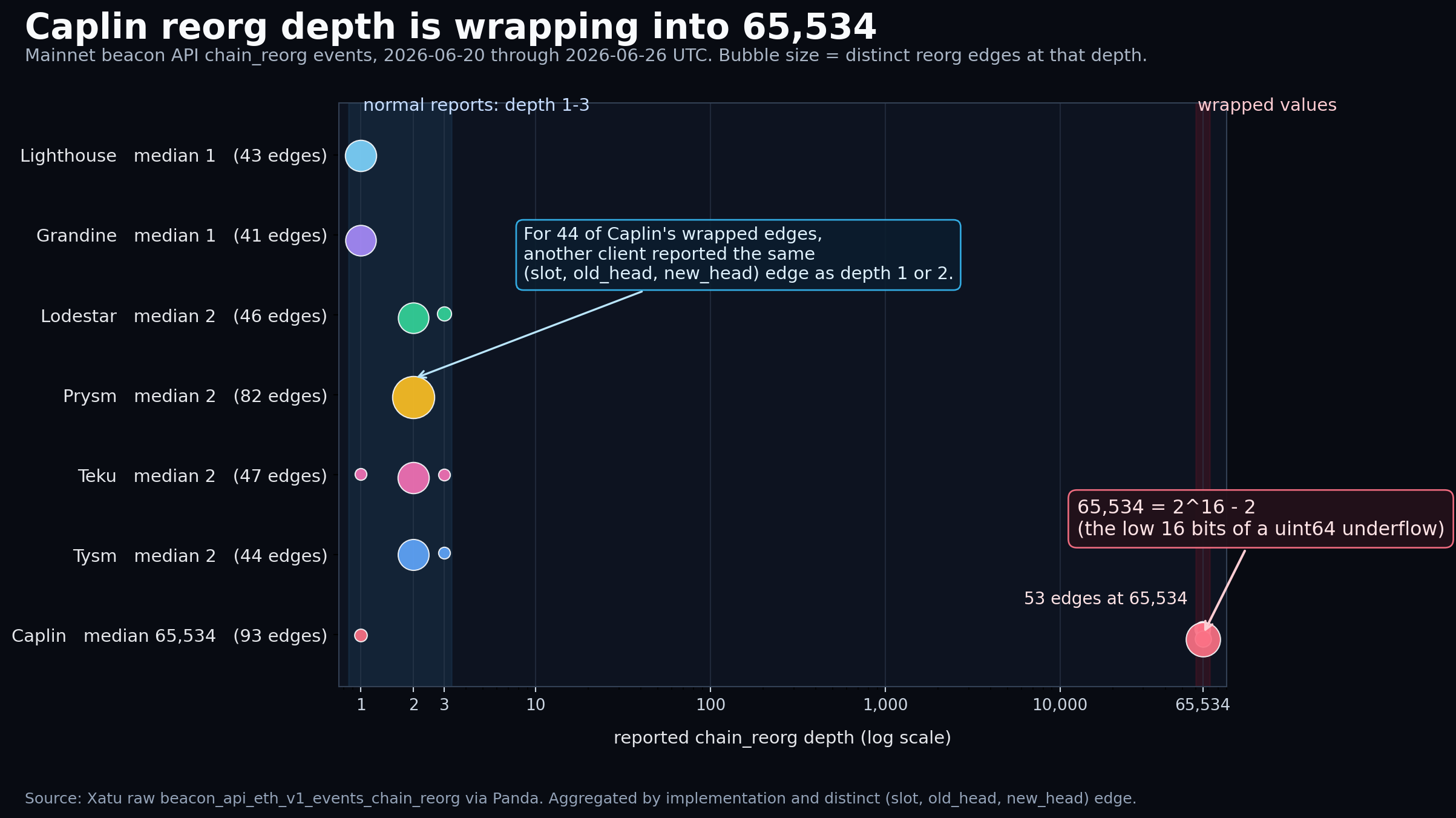

Here is the query behind the chart. I used distinct edges instead of raw rows because raw event rows are observer-weighted. A client with more Xatu sentries should not get to multiply the reorg count.

SELECT
  meta_consensus_implementation AS impl,
  depth,
  uniqExact(tuple(slot, old_head_block, new_head_block)) AS edges,
  count() AS raw_rows
FROM beacon_api_eth_v1_events_chain_reorg
WHERE meta_network_name = 'mainnet'
  AND slot_start_date_time >= toDateTime('2026-06-20 00:00:00')
  AND slot_start_date_time <  toDateTime('2026-06-27 00:00:00')
GROUP BY impl, depth
ORDER BY impl, depth

The obvious bad read is: Ethereum had giant reorgs and only Caplin noticed. That is not what the data says. For 44 of Caplin's wrapped edges, another implementation reported the exact same (slot, old_head_block, new_head_block) edge as depth 1, 2, or, in a few follow-on cases, 3. The roots line up; the depth field does not.

The cross-check query is the part I would not skip:

WITH caplin_wrapped AS (
  SELECT DISTINCT slot, old_head_block, new_head_block
  FROM beacon_api_eth_v1_events_chain_reorg
  WHERE meta_network_name = 'mainnet'
    AND slot_start_date_time >= toDateTime('2026-06-20 00:00:00')
    AND slot_start_date_time <  toDateTime('2026-06-27 00:00:00')
    AND meta_consensus_implementation = 'caplin'
    AND depth >= 60000
)
SELECT
  r.meta_consensus_implementation AS impl,
  r.depth,
  uniqExact(tuple(r.slot, r.old_head_block, r.new_head_block)) AS same_edges
FROM beacon_api_eth_v1_events_chain_reorg AS r
GLOBAL INNER JOIN caplin_wrapped AS c
  ON r.slot = c.slot
 AND r.old_head_block = c.old_head_block
 AND r.new_head_block = c.new_head_block
WHERE r.meta_network_name = 'mainnet'
  AND r.slot_start_date_time >= toDateTime('2026-06-20 00:00:00')
  AND r.slot_start_date_time <  toDateTime('2026-06-27 00:00:00')
  AND r.meta_consensus_implementation != 'caplin'
GROUP BY impl, depth
ORDER BY impl, depth

On those same wrapped Caplin edges, Lighthouse had 41 edge reports at depth 1, Grandine had 40 at depth 1, Prysm had 40 at depth 2, Teku had 42 at depth 2, Lodestar had 40 at depth 2, and Tysm had 41 at depth 2. There were three depth-3 follow-ons across Lodestar, Teku, and Tysm. Nothing in that comparison looks like a 65k-deep chain event.

The number is a giveaway. 65,534 = 2^16 - 2. Erigon issue #20885 described Caplin emitting 2^64 - 2 for chain_reorg.depth, a uint64 underflow, with old_head_block pointing at the common ancestor rather than the previous head. Xatu's raw table stores depth as UInt16, so the underflow does not show up as 18,446,744,073,709,551,614. It shows up as the low 16 bits: 65,534.

I checked the type directly because this is exactly the kind of unit/width thing that makes charts lie:

SELECT
  toTypeName(depth) AS depth_type,
  min(depth) AS min_depth,
  max(depth) AS max_depth
FROM beacon_api_eth_v1_events_chain_reorg
WHERE meta_network_name = 'mainnet'
  AND slot_start_date_time >= toDateTime('2026-06-20 00:00:00')
  AND slot_start_date_time <  toDateTime('2026-06-27 00:00:00')

That returns UInt16, min_depth = 1, and max_depth = 65534. So the public table is not just carrying a client bug. It is also narrowing it into a smaller, still-impossible number that looks oddly specific unless you know the original underflow shape.

One caveat: this is not every Caplin version. The wrapped rows in this window came from the version label v3.4.4-dirty linux: 140 raw rows, 93 distinct edges, all with wrapped values. The newer-looking 3.5.0-7e8c1eff linux label had only 3 raw rows across 3 edges, and those were depth 1. Three rows is not enough to declare the bug gone, but it is enough to avoid smearing the current Caplin line with one old dirty build.

The practical lesson is boring and important. If you alert on Beacon API chain_reorg.depth, do not page someone because a raw event row says 65534. First group by (slot, old_head_block, new_head_block). Then keep the reporting implementation and version next to the depth. And if a value is near a power-of-two boundary, assume you are looking at software arithmetic before you assume Ethereum reorganized nine days of history.
