The BLS12-381 precompiles had one customer

· 5 min read
Aubury Essentian
Ethereum Research

Ethereum added seven BLS12-381 precompiles in Pectra. In two weeks of fresh call-frame data, five of them were never touched. The other two were called 126 times each, and every call came from the same contract.

That contract was not a staking protocol. It was a small cross-chain bridge minting Wrapped Gonka.

EIP-2537 gives EVM contracts cheap access to the BLS12-381 curve used by Ethereum's consensus signatures. It added separate precompiles for G1 and G2 addition, multi-scalar multiplication, pairing checks, and mapping field elements onto each group. Pectra activated the set on mainnet in May 2025.

The useful distinction is that consensus clients do not call these precompiles to verify attestations. Consensus BLS work happens outside the EVM. These seven addresses are for contracts that want BLS arithmetic onchain, so I wanted to see who was actually using them.

Xatu's current call-frame history gave me 14 complete UTC days, June 27 through July 10, covering execution blocks 25,405,252 through 25,505,640. It had root frames for 30,668,658 transactions. The raw canonical transaction table had 30,671,396 hashes over the same blocks, so the traced surface covered 99.991% of the canonical transactions.

I counted call frames whose target was one of EIP-2537's seven addresses:

SELECT
target_address,
count() AS frame_count,
uniqExact(transaction_hash) AS transaction_count,
sum(gas_cumulative) AS total_precompile_gas,
countIf(error_count > 0) AS frames_with_error
FROM mainnet.int_transaction_call_frame FINAL
WHERE block_number BETWEEN 25405252 AND 25505640
AND target_address IN (
'0x000000000000000000000000000000000000000b',
'0x000000000000000000000000000000000000000c',
'0x000000000000000000000000000000000000000d',
'0x000000000000000000000000000000000000000e',
'0x000000000000000000000000000000000000000f',
'0x0000000000000000000000000000000000000010',
'0x0000000000000000000000000000000000000011'
)
GROUP BY target_address
ORDER BY target_address;

Only two rows came back. The pairing-check precompile at 0x0f had 126 frames and 12,965,400 gas. The map-Fp-to-G1 precompile at 0x10 also had 126 frames, costing 693,000 gas. The other five addresses had zero frames, including both multi-scalar-multiplication precompiles.

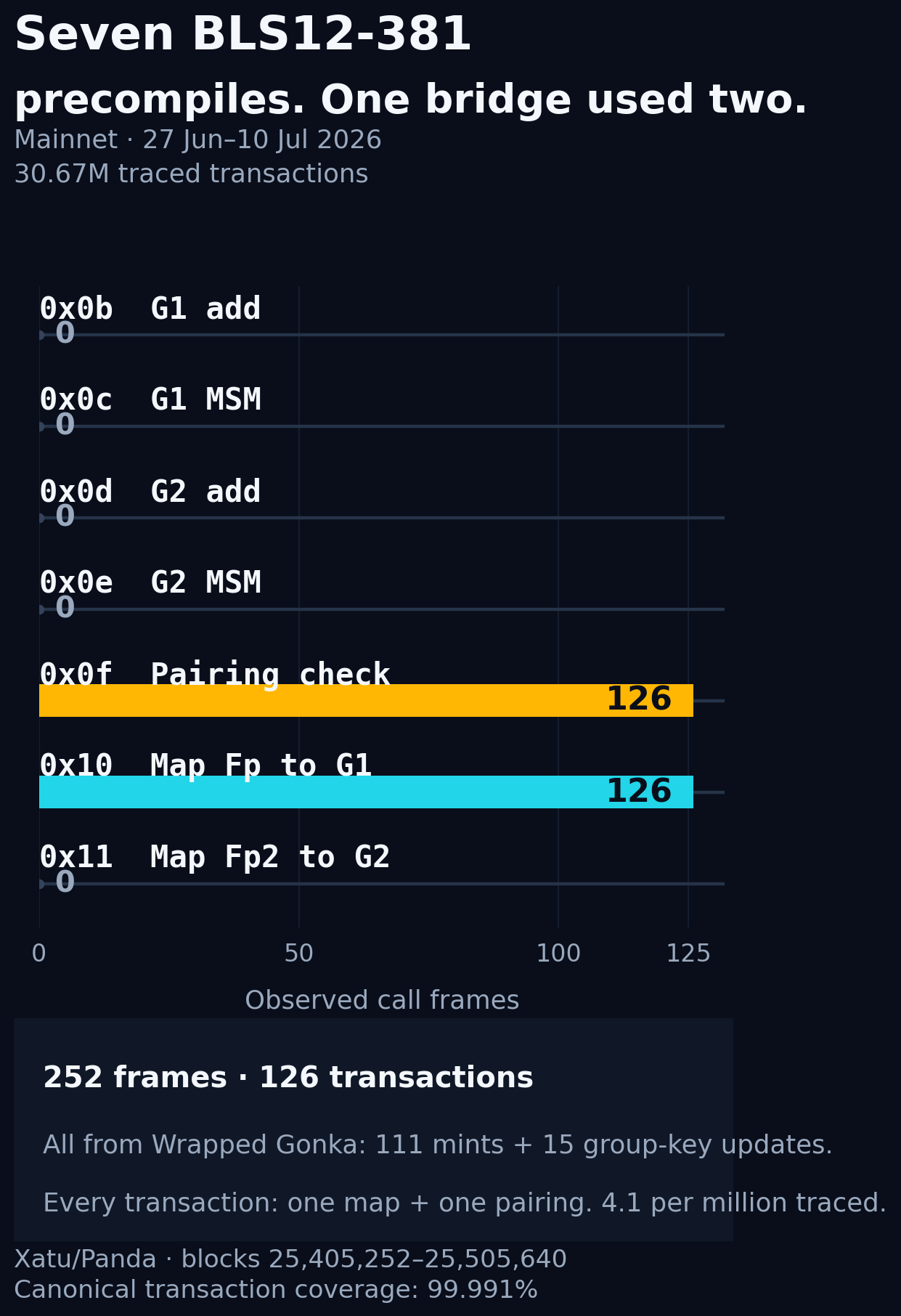

Horizontal bar chart of Ethereum's seven BLS12-381 precompiles. Five had zero observed call frames. Pairing check at 0x0f and map Fp to G1 at 0x10 each had 126, all from the Wrapped Gonka bridge.

The symmetry was exact. All 126 transactions had three call frames: the bridge contract at the root, one STATICCALL to 0x10, and one STATICCALL to 0x0f. No other contract appeared as the parent. There were no failed precompile frames, and there were no transactions sent directly to any of the seven precompile addresses.

The address, 0x972a…2f68, is a verified BridgeContract that also serves as the Wrapped Gonka ERC-20. Gonka's bridge documentation names the same Ethereum contract. Its source says it uses BLS threshold signatures to authorize bridge actions.

The code explains the two-bar chart. It hashes a bridge command, maps that hash into G1 with 0x10, then asks 0x0f to check two pairings: the submitted signature against the G2 generator, and the negated message point against the current group public key. Under EIP-2537's gas formula, a two-pair check costs 32600 * 2 + 37700 = 102900 gas. Mapping into G1 costs another 5,500, which reproduces the 108,400 gas visible in every successful transaction before the bridge's ordinary contract work.

There were two entry points behind the 126 transactions: 111 mintWithSignature calls and 15 submitGroupKey calls. The raw transaction and log tables reproduced that split independently. One additional mint attempt failed before reaching the BLS calls, which is why the selector count was 112 while the successful mint event and precompile paths each stopped at 111.

SELECT
substring(input, 1, 10) AS selector,
count() AS transaction_rows,
countIf(success) AS successful_rows,
uniqExact(from_address) AS senders,
sum(gas_used) AS total_gas_used
FROM default.canonical_execution_transaction FINAL
WHERE meta_network_name = 'mainnet'
AND block_number BETWEEN 25405252 AND 25505640
AND to_address = '0x972a7a92d92796a98801a8818bcf91f1648f2f68'
GROUP BY selector
ORDER BY transaction_rows DESC;

The relevant output was 0xb7c9e84a (mintWithSignature) at 112 rows / 111 successes, and 0x969731f6 (submitGroupKey) at 15 / 15. canonical_execution_logs then had exactly 111 WGNKMinted events and 15 GroupKeySubmitted events over the same blocks.

The older raw canonical_execution_traces projection returned no rows for addresses 0x0b through 0x11. That table simply does not expose these precompile frames, while the structlog-derived call-frame model does. Without the new surface, this little pocket of BLS activity looked like zero.

This is a narrow observation, not a claim that nobody else has ever used EIP-2537. The call-frame history starts partway through June and lags the chain by several days, while 2,738 canonical transactions in the chosen block range had no root frame. Within the 30.67 million traced transactions, though, the result is clean: about 4.1 BLS-using transactions per million, all running the same map-and-pairing routine inside one bridge.

Pectra shipped seven general-purpose curve operations. In this window, Ethereum's onchain BLS workload was not general-purpose at all. It was 111 bridge mints and 15 group-key rotations.
